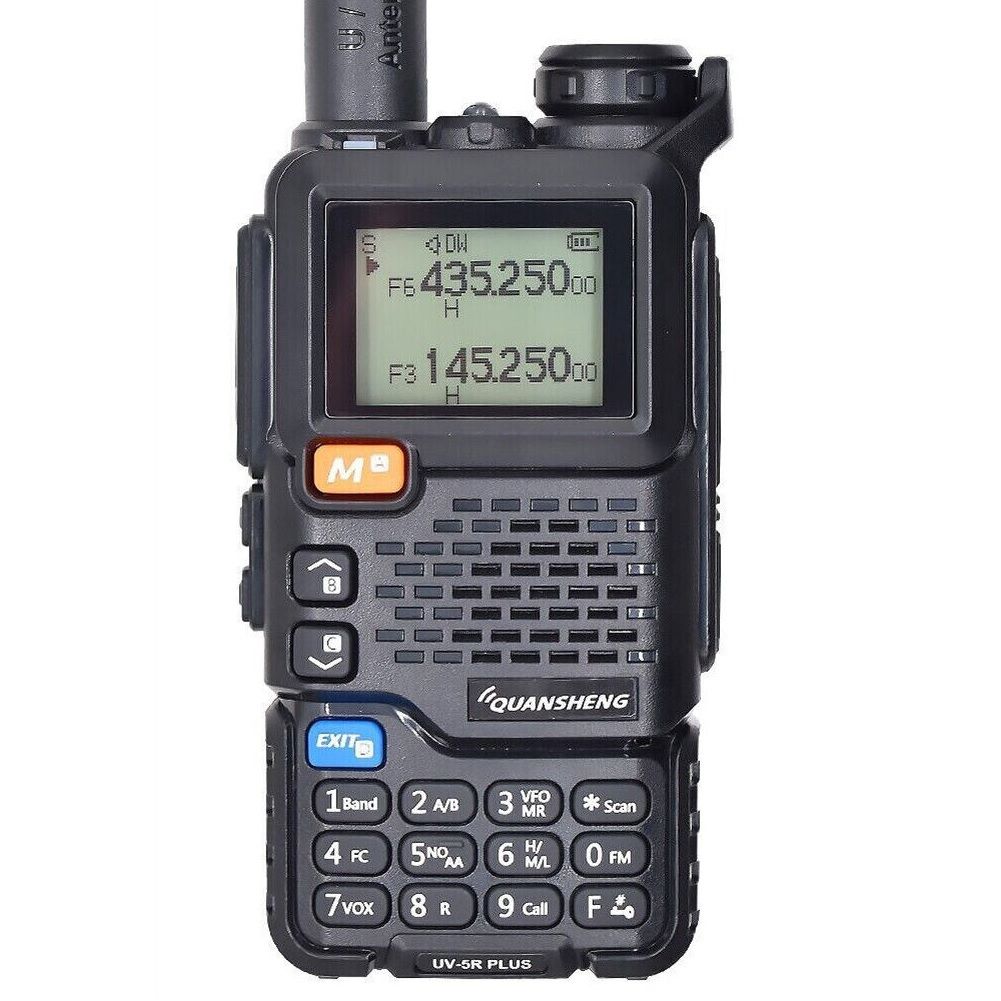

Quansheng UV-5R Plus Dual Band Handheld Transceiver
For when all you need is a basic dual band radio the Quansheng UV-5R Plus is ready when you are. This radio features 200 memory channels, a large 2,000 mAh battery, and a full 5W of RF power. A modern screen makes things easy to read, and Chirp compatibility means it’s easy to program. With all the features the average ham needs like repeater tones, offsets, and DTMF this basic radio is perfect for everyday use.
My Rating
| Category | Score | Notes |
|---|---|---|
| Build & Look | ★★★☆☆ | Solid construction, decent finish |
| UI | ★★★☆☆ | Simple and straightforward, would be better if in a logical sequence |
| Performance | ★★★★☆ | Does the job on air |
| Steve Jobs standard | ★★★☆☆ | Looks OK, works well — read why this matters |
Radio Specifications
- Frequency Band: 144–148MHz, 430–450MHz
- Transmitting Power: ≤5W
- Emission Current: ≤1.5A
- Number of channels: 200
- Number of FM Presets: 16
- Frequency stability: ±1ppm
- Size: 115mm X 60mm X 37.5mm
- Weight: 234g
- Chirp Support: Yes
Official Programming Guides
Quansheng publishes programming guides. They are readable and cover the basics — but for the most reliable setup, we recommend using the Chirp software which supports this model.
